Vision Engineering; U.S.A

OPTA 3D stereo magnifier
Model:
OPTA head crescent base 4X lens

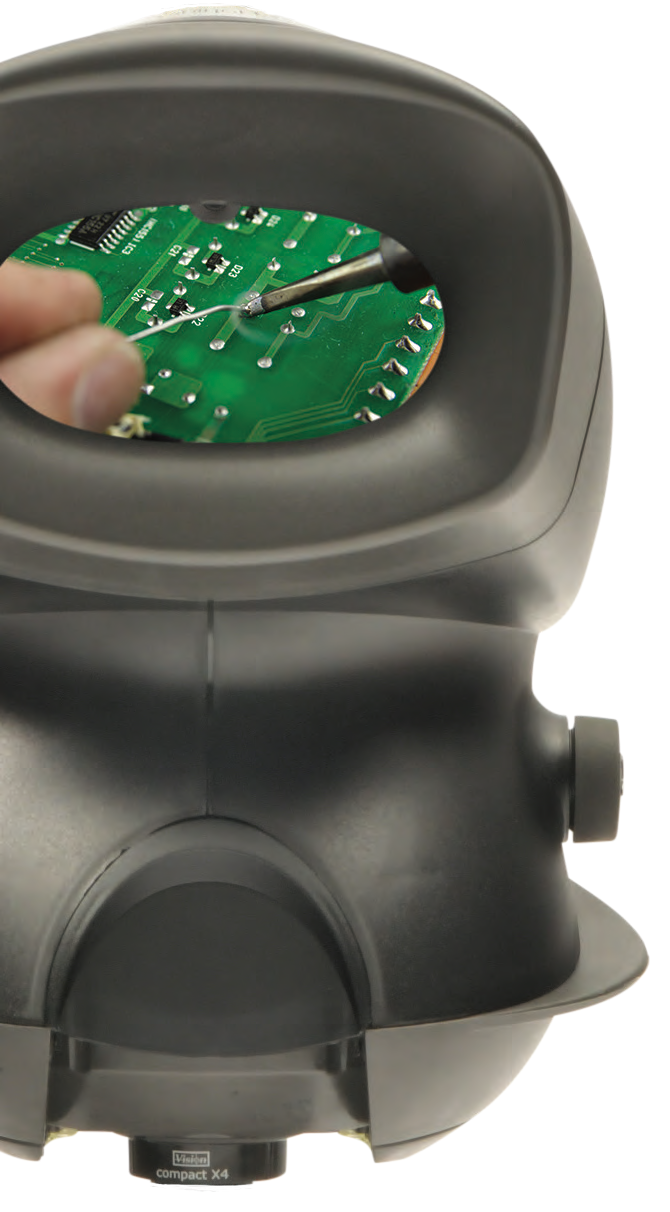

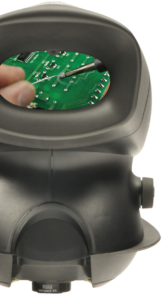

The Vision Engineering OPTA is an ergonomic 3D stereo microscope kit featuring an eyepiece-less optical viewing head, a crescent base track stand, and a 4X objective lens. This configuration is specifically designed to provide high-precision inspection with enhanced operator comfort and depth perception.

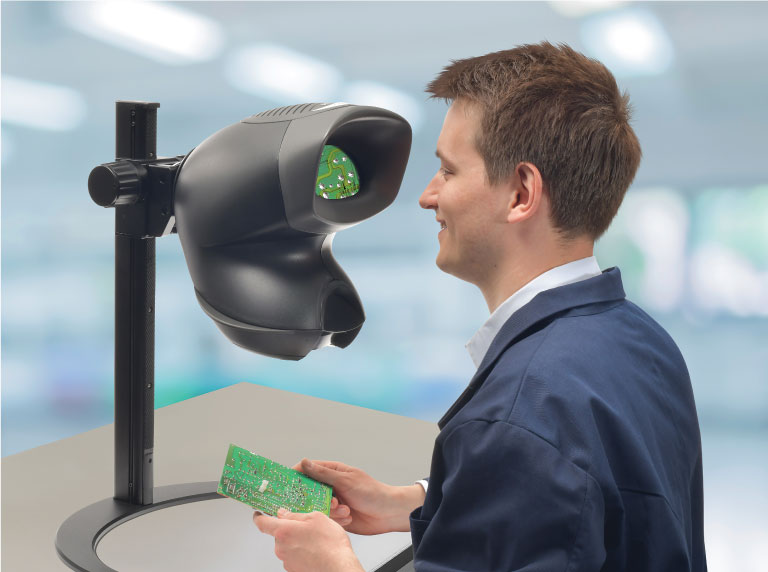

• Ergonomic Design: The patented eyepiece-less technology eliminates the need to align eyes with small eyepieces, reducing eye strain and allowing operators to wear prescription or safety glasses comfortably.
• Improved Coordination: The 3D stereo view enhances hand-eye coordination, making it ideal for detailed hand-working tasks like rework, assembly, and inspection.
• Versatile Applications: Frequently used in industries such as electronics manufacture, dental laboratories, jewelry, and precision mechanics.
• Quick Setup: Designed with intuitive controls for seamless transitions between different users in shared environments like labs or classrooms.

OPTA 3D stereo magnifier guarantees exceptional operator comfort while delivering outstanding image quality and accuracy.
Perfect view with depth perception
4x magnifications
Fantastic hand-eye coordination

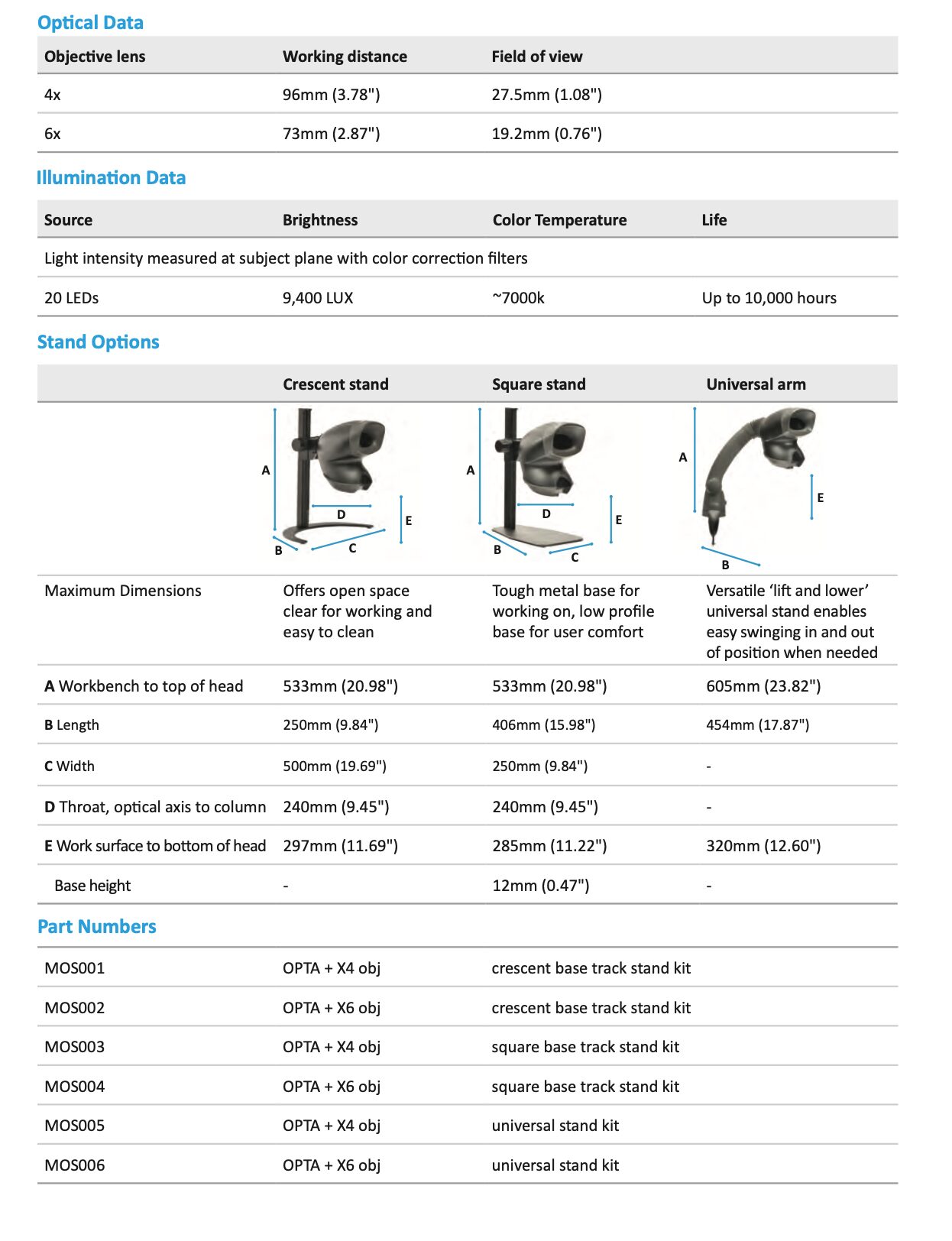

• Magnification: 4X fixed magnification (6X option available separately).
• Working Distance: 96 mm (approx. 3.78″), providing ample space for tools and manual tasks.
• Field of View: 27.5 mm, allowing for a wide inspection area.
• Illumination: Integrated 20-LED array providing 9,400 Lux at a color temperature of ~7,000 K.

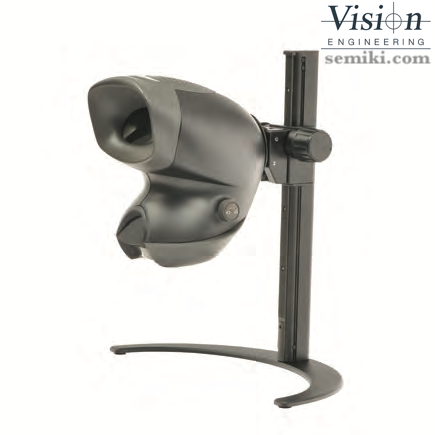

• Base Type: Low-profile Crescent Base Track Stand, which offers an open work surface for easier maneuvering and cleaning.

The Vision Engineering OPTA (Model: MOS001) with a 4X lens and crescent base is a specialized tool for detailed hand-working tasks that require a blend of magnification and physical space for tools. Its ergonomic, eyepiece-less design makes it particularly effective for industries where operators must perform precise manual manipulation for extended periods without fatigue.

• Electronics Manufacture & Repair: Ideal for PCB inspection, identifying soldering defects (e.g., poor wetting, fillet tearing), and performing delicate solder rework.
• Dental Laboratories: Technicians use the 3D view to meticulously inspect impressions, dies, wax-ups, and frameworks. It is essential for ensuring the precise fit and natural finish of crowns, bridges, and implants.
• Precision Engineering: Used for component finishing, deburring with manual tools, and detecting surface defects in anodized or hardened parts.
• Medical Device Quality Control: Facilitates the visual inspection of surgical tools for cleanliness and microbial residue, as well as the assembly of intricate medical components.
• Plastics & Rubber: Used in the inspection of seals, packaging, and closures. The long working distance (96 mm) is indispensable for flash removal in injection molding processes.
• Jewelry & Watchmaking: Perfect for setting stones, engraving, and the assembly of small mechanical watch parts where depth perception is critical.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
