Mantis stereo microscopes

Model:
Mantis PIXO with verso arm

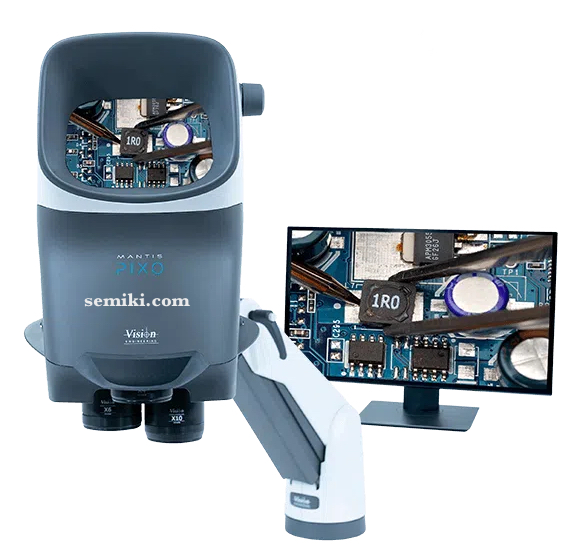

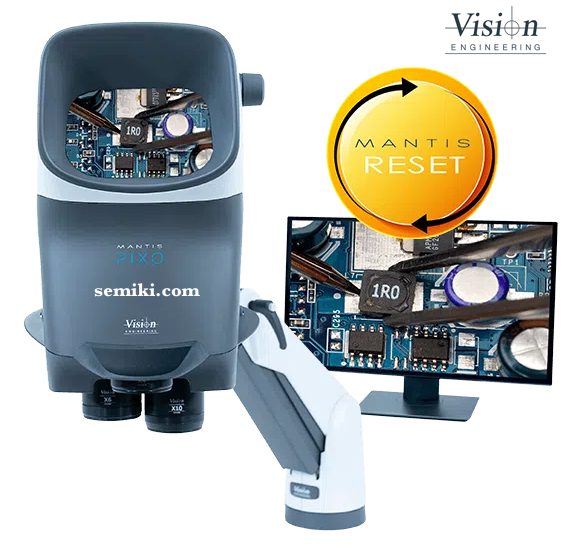

The Vision Engineering Mantis PIXO is a 3rd-generation ergonomic stereo microscope featuring an integrated 5MP digital camera for high-quality inspection and documentation. When paired with the Verso arm, it offers a flexible, “lift and lower” universal stand that can be easily swung into and out of position.

• Magnification (8x): An 8x objective lens provides a 60 mm working distance and an 18 mm field of view.
• SLWD Option: A “Super Long Working Distance” (SLWD) 8x lens is also available, offering a significantly larger 113 mm working distance.
• Camera: Includes a built-in 5.04 MP CMOS sensor capable of capturing images at 2592 x 1944 pixels and a frame rate of up to 48 fps.
• Lighting: Features Dynamic 3D illumination with 25-step dimmable LED banks and an optional white/UV lighting toggle

The Vision Engineering Mantis PIXO combined with the Verso arm is primarily used for precision inspection, rework, and assembly tasks across high-tech industries. This specific setup is favored when users need both a high-resolution digital record and a clear, unobstructed workspace when the microscope is not in use

• Electronics Manufacturing: Ideal for soldering, PCB inspection, and surface-mount device (SMD) rework. The 3D stereo view improves hand-eye coordination for delicate repair work.
• Medical Device Manufacture: Used for the critical inspection and assembly of stents, catheters, and other surgical implants.
• Precision Engineering: Well-suited for component finishing, deburring, and detecting defects in anodizing or hardening.
• Aerospace & Automotive: Utilized in quality control for small mechanical parts, checking for injection molding defects, and inspecting internal threads or cavities using specialized episcopic (coaxial) lighting.
• Life Sciences & Labs: Supports high-concentration tasks like sample preparation, dissection, and manipulation where ergonomic comfort is required for long periods.

• Workspace Flexibility: The Verso arm is a universal “swing-away” stand that can be easily repositioned or moved out of the way to clear the workbench for other tools. An optional extension can add over 8 inches of reach.
• Digital Documentation: The PIXO’s integrated camera allows operators to capture images and video for traceability, training, and remote collaboration without needing a separate camera attachment.

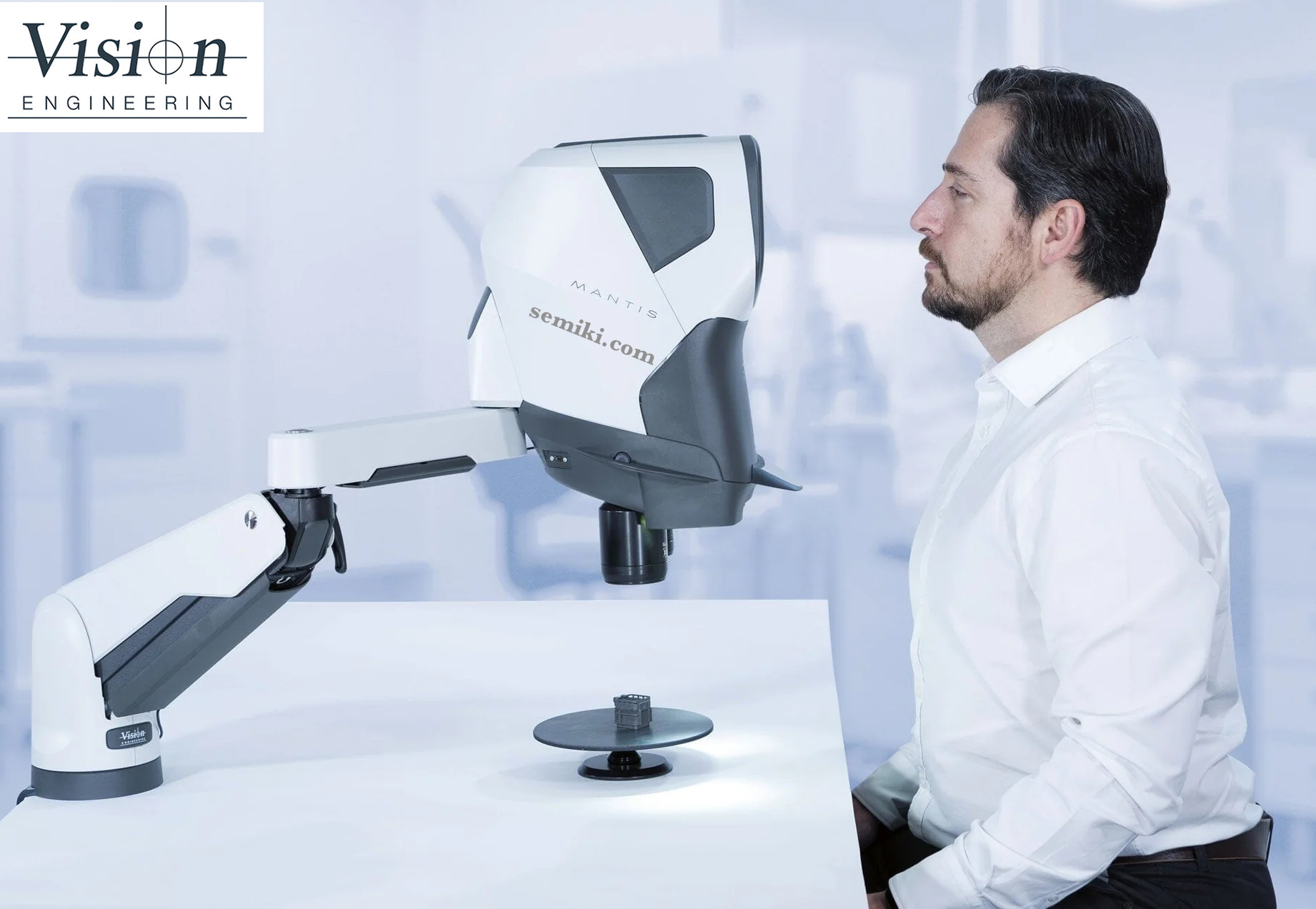

• Ergonomics: The “eyepiece-less” design allows operators to wear safety glasses or prescription spectacles comfortably, reducing eye strain and improving posture during repetitive tasks.
• Advanced Lighting: The system offers five different illumination methods—including UV light options—to highlight fluorescing coatings, dyes, or internal defects in boreholes.

The Vision Engineering Mantis PIXO with an 8x objective lens on a Verso Arm is a high-resolution, ergonomic 3D stereo inspection system. This configuration is specifically designed for industrial rework and assembly, featuring a 5.04 MP integrated camera and a flexible “lift and lower” articulating stand.

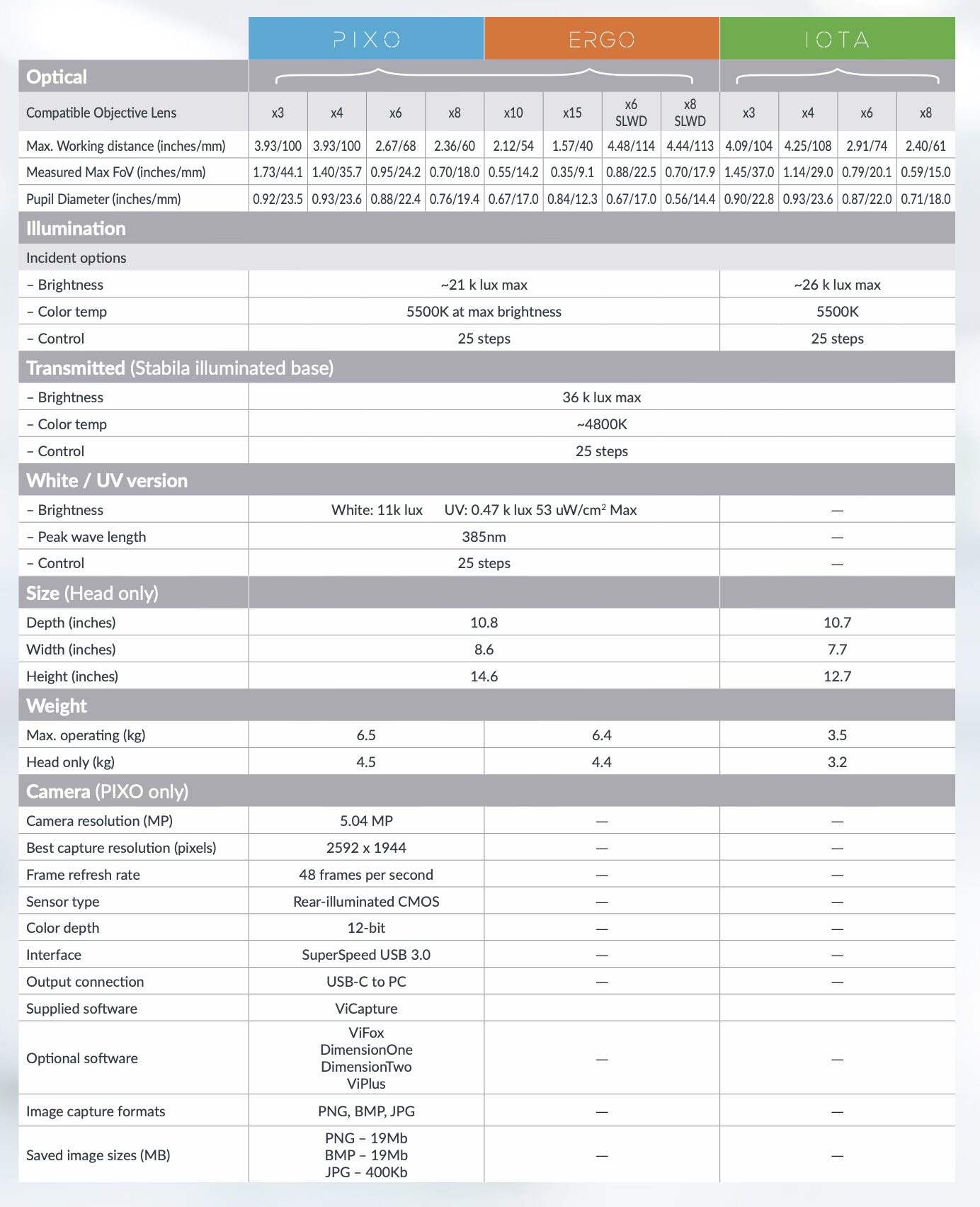

Specification:

• Standard 8x Objective (MTO008):
  • Working Distance: 60 mm (2.36″).
  • Field of View (FOV): 18.0 mm (0.7″).
  • Pupil Diameter: 19.4 mm.
• 8x SLWD (Super Long Working Distance – MTO009):
  • Working Distance: 113 mm (4.45″).
  • Field of View (FOV): 17.9 mm (0.7″).
  • Constraint: SLWD lenses can only be fitted in the front turret position, and the turret cannot rotate while in use.

• Integrated Camera: 5.04 MP CMOS sensor with a capture resolution of 2592 x 1944 pixels.
• Performance: Frame rate up to 48 fps for smooth live video.
• Turret: 3-position bidirectional turret for quick magnification changes (3x to 15x).
• Illumination: Dynamic 3D LED lighting with 25-step dimmable banks and a 5500K color temperature.
• Weight: Head only is 4.5 kg; max operating weight is 6.5 kg.

• ViCapture: Standard software for capturing high-resolution PNG/BMP/JPG images and video, adding on-screen annotations, and using digital overlays.
• IDS Peak: Professional suite for processing high-resolution files (up to 30 MB).
• Interface: Connects via SuperSpeed USB 3.0 with a USB-C to PC output.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
